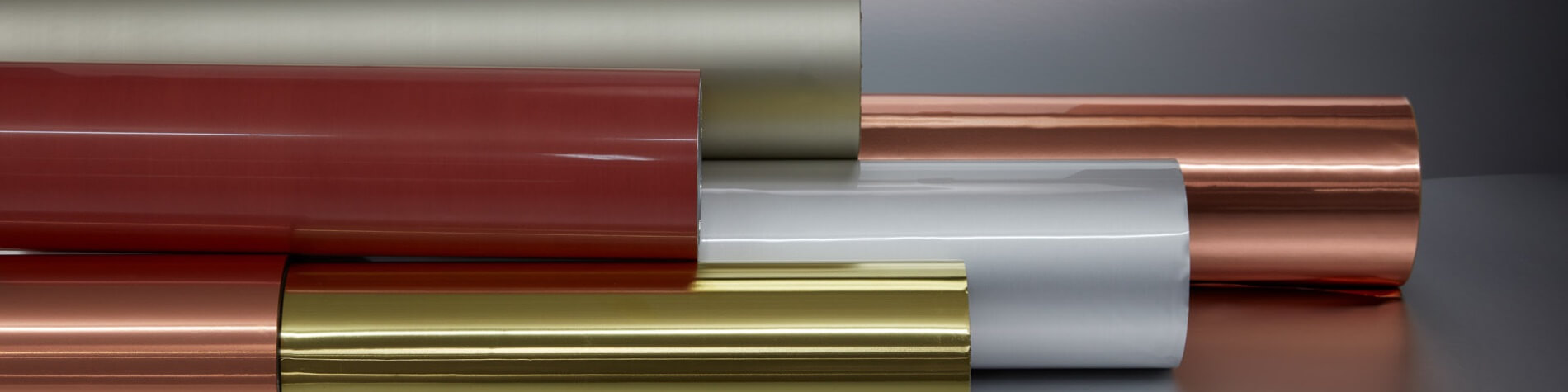

Typical materials
We use a wide range of materials. We list the most common ones below.
Please contact us for information on other materials.
We use a wide range of materials. We list the most common ones below.
Please contact us for information on other materials.
Plastic films

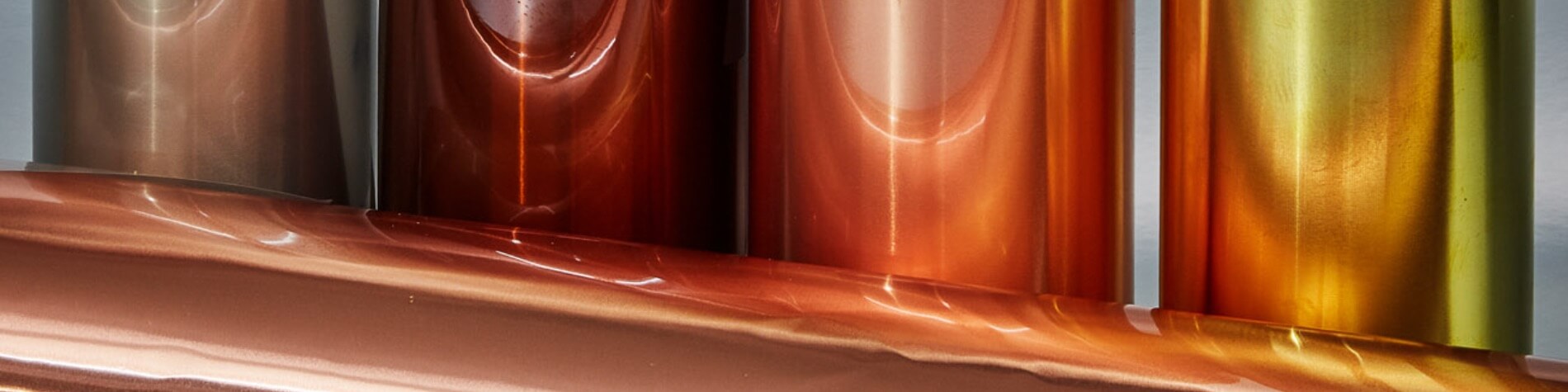

Metal foils
Papers and cardboards
Papers and cardboards

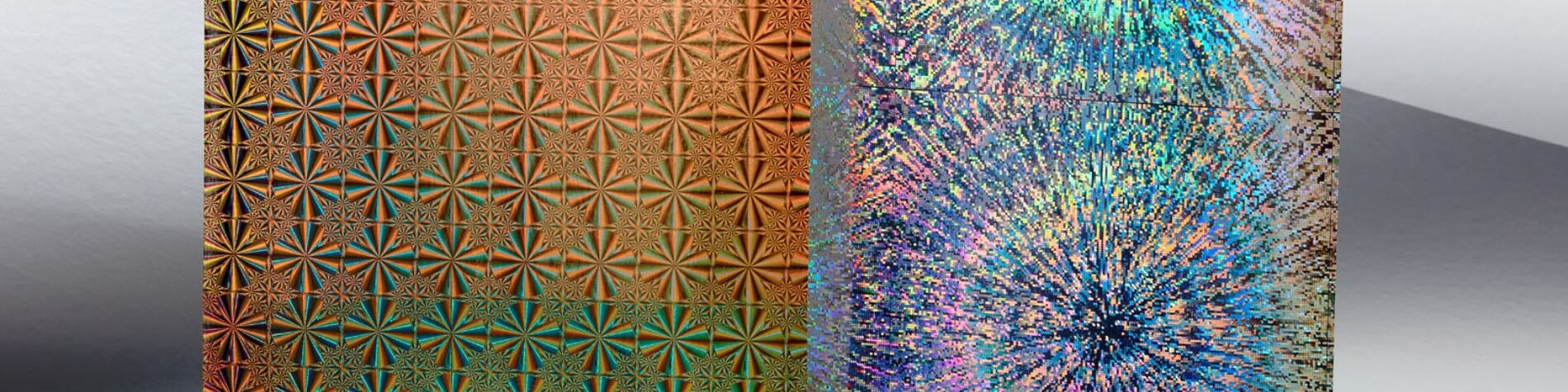

Other materials
Other materials
Barrier materials, technical data

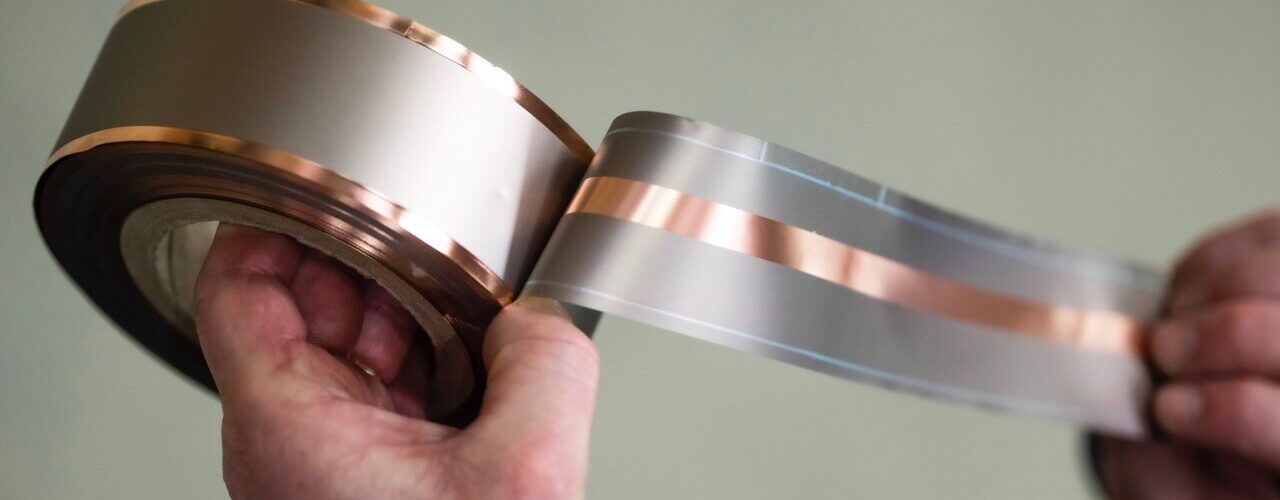

Flexible laminates for our customers' specific needs
| PET-films | Thickness (µm) | Comment |
|---|---|---|
Standard PET |
12 / 19 / 23 / 36 / 50 / 75 / 125 / 250 |
Transparent |
PET hs |
23 / 36 / 50 / 75 |
Transparent |
PET ehs |
23 / 36 / 50 / 75 |
Transparent |
Metallized PET |
12 |
Transparent |
PET-films are available as UV stabilized, hydro resistant, flame retardant, heat sealable, food approved, and in different colours. hs = Heat stabilized film | ehs = Extra heat stabilized film
| PE-films | Thickness (µm) | Comment |
|---|---|---|
LDPE |
30 / 40 / 75 / 100 |
Transparent |
HDPE |
50 |
1st side Black/2nd side White |
PE-films are available as food approved and in different colours.
| PEN-films | Thickness (µm) | Comment |
|---|---|---|
Standard PEN |
50 / 75 / 125 |
Transparent |
PEN hs |
50 / 75 |
Transparent |
PEN-films are available as flame retardant and extra clear.
| PP-films | Thickness (µm) | Comment |
|---|---|---|
LDPE |
30 / 40 / 75 / 100 |
Transparent |
HDPE |
50 |
1st side Black/2nd side White |
| PI-films | Thickness (µm) | Comment |
|---|---|---|
Standard PEN |
50 / 75 / 125 |
Transparent |
PEN hs |
50 / 75 |
Transparent |
Thinner PI-film=more yellow colour.
| PVC-films | Thickness (µm) | Comment |
|---|---|---|
LDPE |
30 / 40 / 75 / 100 |
Transparent |
HDPE |
50 |
1st side Black/2nd side White |
PE-films are available as food approved and in different coulors.
| Other types of plastic films | Thickness (µm) | Comment |
|---|---|---|
Standard PEN |
50 / 75 / 125 |
Transparent |
PEN hs |
50 / 75 |
Transparent |
We are able to use many different kinds of plastic film on reels in our lamination process. Above are examples of plastic films that we are able to use but do not have in stock.
| AI-foils | Thickness (µm) | Comment |
|---|---|---|
Soft AI |
8 / 9 / 12 / 25 / 50 / 100 | |
Hard AI |
9/12/25/50 |
Al-foils are available as annealed (soft) and hard-tempered. Our most commonly used alloys are 8079, 1200, 8111 and 8011 with Al content of at least >98%. There are no significant differences in properties between different alloys.
Â
| Cu-foils | Thickness (µm) | Comment |
|---|---|---|
Cu RA |
10 / 15 / 20 / 35 / 70 | |
Hard AI |
12/18/35/70 |
Cu foils are available as rolled (RA) and electrodeposited (ED). RA is softer and more formative while ED is stiffer and more flat. Cu ED is available as non-treated, reversed treated and treated.
| Pb-foils | Thickness (µm) | Comment |
|---|---|---|
Pb |
125 / 250 |
Protective film on one side |
Pb |
36 |
| Other types of metal foils | Thickness (µm) | Comment |
|---|---|---|
CuZn (Brass) |
>12 | |
CuNiZn (German Silver) |
>25 | |
CuNi |
>25 | |
Steel |
>38 |
Also available as stainless |
We are able to use many different kinds of metal foil on reels in our lamination process. Above are examples of metal foils that we are able to use but do not have in stock.
| Resistivity metal foils | Thickness (Ωmm2/m) | Comment |
|---|---|---|
Cu Ra |
0.017 | |
Cu ED |
0.017 | |
AI RA |
0.029 | |
CuZn |
0.067 | |
CuNiZn |
0.330 | |
CuNiZn |
0.490 |
| Paper & Cardboard | Thickness (g/m2) | Comment |
|---|---|---|
MG Paper |
40 , 60 |
Bleached, food approved |
MG Paper |
80 |
Unbleached |
Cable Paper |
86, 100 |
Unbleached |
Greaseproof |
70, 90 |
Bleached, food approved |
Greaseproof, siliconized |
75, 85 |
Bleached, one side siliconized, food approved |
Cardboard |
230, 270 |
Uncoated, bleached |
Cardboard |
500 |
One side PE-coated |
